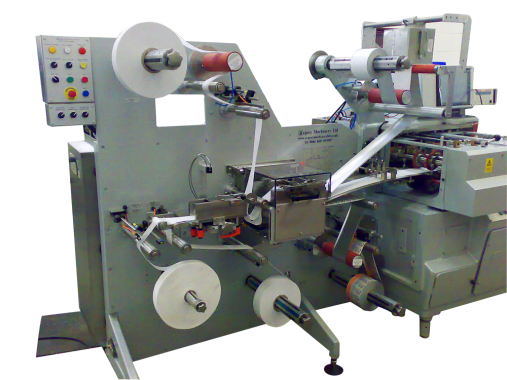

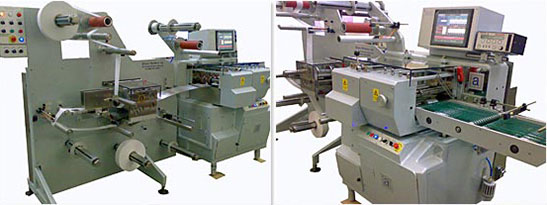

Wound Care Dressing Converting Machinery

Argosy wound care dressing converting machinery has a multi axis servo controlled with hmi for easy product change overs for multiple layered dressings. An electronic web tension system allows for delicate materials and high flexibility with configurations for multiple dressing sizes and formats. Inspection and rejection systems ensure consistent quality at all times.

Integration with 4 side seal machine for continuous converting for wound care products possible. Collating system to collate finished products in various multiple collations.

Options

Centre line machine, material and product is central to machine with skip seal
Facility for open pack
Datum edge machine, edge of material runs off the side seal rollers so no skip is required
Side seal rollers can have either heat on bottom rollers or top rollers
Infeed std 2 metre length others available to order
Single axis servo controlled registration
Four axis machine servo controlled (infeed, registration, cross seal, crosscut)

Registration on top or bottom web only not both
Operator "Touch screen" with temperature controllers on screen
Independent temperature controllers
Automatic reject system for faulty packs
Sealing temperature monitoring
Collating conveyor for finished products
Zero access interlocking perimeter guarding

Wound care dressing converting machines
